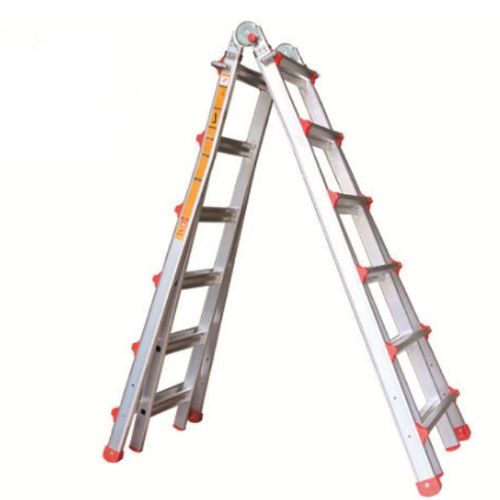

VIETLADDERS MULTI-PURPOSE FOLDING LADDER, MODEL NVLB-46A

1. SPECIFICATIONS

Mục sốCác bướcA (cm)C (cm)D (cm)E (cm)F (cm)NW (kg)Kích thước đóng gói (cm)
NVLB-434 * 35293,5148190,53049,7104 × 52,5 × 21
NVLB-444 * 458120,5201,5246,341413,36132 × 58,2 × 21
NVLB-454 * 565146,8252302,5527,415,62160 × 65,6 × 21
NVLB-464 * 672,5173,5303,436063818,63188x74x21

* Open double use max length: 303.4cm
* Open double use min length: 173.5cm
* Open straight max length: 638cm
* Space between two rungs: 28 cm
* Aluminum mode: 6063
* Thickness of Aluminum:1.5-3.1mm
* Steps: 4x6 steps
* Net weight: 18.63 kgs
* Max load: 150 kgs

2. PACKAGES

* Protective membrane + poly foam+ CTN
* Packing size: 188X74X21 cm

3. Feature & Function


MATERIALS

Constructed with durable and high quality materials of 6063 aluminum alloy, avoid corrosion with time and severe weather, can withstand loads up to 150 kgs.


LOCK

Advanced technology of auto-locking knobs "J " QUICK LOCK surely and safely into all positions, help to adjust the length and configuration of the ladder faster and easier . The lock automatically is latched when extending the ladder so that it will not shake during working, giving users the best experience.

USE POSITIONS

Multi-purpose aluminum ladders have basic structures, super easy for operation, can use 4 different positions as: Double use ladder (A-shape), Extension ladder (I-shape), Staircase - steps ladder, and Scaffolding base

If you need a small scaffolding to use, you just need to pull out inner cage into 2 ladders. On the half outer, we latch the lock to secure the ladder legs. Using an aluminum pedestal or a wooden board between the legs of the ladder will be a safe workplace.

4. Advantages

- Get one for decorating and household cleaning all year round

- Provides long-lasting durability

- Small in size after folding, easy to transport and store.

- Use with many shapes, convenient for using with different positions, areas.

Multi-Purpose Ladder

The Multi-purpose Ladder is a foldable aluminum ladder designed for flexibility, portability, and safety. Its compact design makes it easy to store and carry, ideal for both indoor and outdoor tasks such as home cleaning, decorating, electrical repairs, and gardening.

Thanks to its smart hinge system, the ladder can be used in multiple configurations—A-frame, I-shape, or fully extended—suiting various work environments.

Thanks to its smart hinge system, the ladder can be used in multiple configurations—A-frame, I-shape, or fully extended—suiting various work environments.

Key Benefits

  • Space-saving: Folds down for easy storage.
  • Lightweight: Easy to carry and move.
  • Versatile: Suitable for home, office, or construction tasks.
  • Safe & Stable: Equipped with secure locks and non-slip feet.
  • Durable: Made from high-quality, corrosion-resistant aluminum.
Technical Specifications
  • Material: High-quality, rust-resistant aluminum.
  • Design: Smart hinge system for multiple setups: A-frame, straight, or fully extended.
  • Height: Adjustable based on configuration and model.
  • Load Capacity: Up to 150 kg (330 lbs).
  • Feet: Non-slip rubber caps for added stability.
  • Portability: Lightweight and foldable for easy transport and storage.
  • Applications: Suitable for indoor and outdoor tasks — cleaning, repairs, decorating, gardening, and more.
Accessories
In our assortment there are also smart accessories that make your work even easier.
Safety Hinge Lock The ladder is equipped with a robust hinge lock system featuring a flexible and user-friendly latch design. Users can easily adjust the ladder to various forms, such as A, I, or fully extended, with just a simple motion. The locking mechanism ensures that the angles remain securely fixed, enhancing stability and guaranteeing absolute safety when working at heights.
Anti-Slip Ladder Feet The ladder's feet are designed with anti-slip rubber pads to increase friction with the surface. This feature ensures the ladder maintains stability and firmness when used on various surfaces such as tile, concrete, or slightly inclined terrain. The foot design also helps evenly distribute weight, minimizing shaking and providing maximum safety for the user.
