1. Specification

Item No.	Steps	A (cm)	C (cm)	D (cm)	E (cm)	F (cm)	N.W (kgs)	Packing size (cm)
NVLB-43	4*3	52	93,5	148	190,5	304	9.7	104 x 52.5 x 21
NVLB-44	4*4	58	120,5	201,5	246,3	414	13.36	132 x 58.2 x 21
NVLB-45	4*5	65	146,8	252	302,5	527,4	15.62	160 x 65.6 x 21
NVLB-46	4*6	72,5	173,5	303,4	360	638	18.63	188 x 74 x 21
NVLB-47	4*7	72,5	185,5	345	–	–	24	210 x 72.5 x 21
NVLB-48	4*8	80	211,5	397,5	–	–	27.3	239 x 80 x 21
NVLB-49	4*9	87,5	237,5	450	–	–	31	267 x 87.5 x 21
NVLB-50	4*10	95	263,5	502,5	–	–	35	295 x 95 x 21

2. Feature & Function

Materials

Constructed with durable and high quality materials of 6063 aluminum alloy, Source of billet to create aluminum is from Korea follow KSD6759 standard.
Aluminum surface is treated and anodized in Black with a thickness up to 14 Microm help to increase the hardness, increase the strength of the material, avoid corrosion with time and severe weather, easy to clean and can withstand loads up to 150 kgs.The color electrostatic painting smooth, anti-rust.
Aluminum designed edges to increase the bearing capacity of the material.

Lock

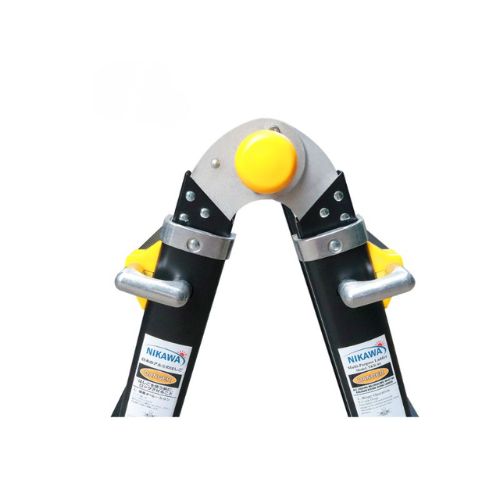

Advanced technology of auto-locking knobs "J ” QUICK LOCK surely and safely into all positions, help to adjust the length and configuration of the ladder faster and easier

The lock automatically is latched when extending the ladder so that it will not shake during working, giving users the best experience.

Wheels

Multi-function folding aluminum ladders are equipped with wheels at the foot of the ladder for easy transportation, stowage, simple operation and flexibility. Ladder foot pads made of anti-slip ABS plastic and firmly closed

Using Position

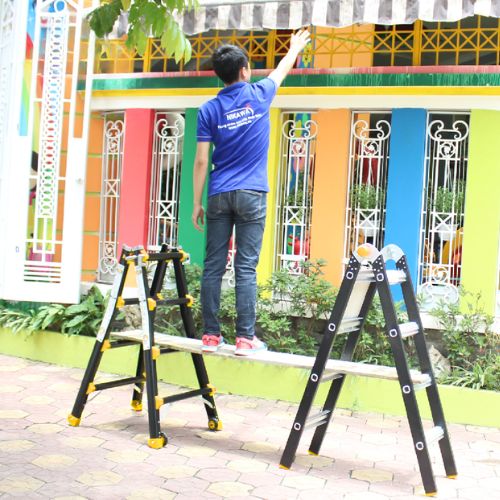

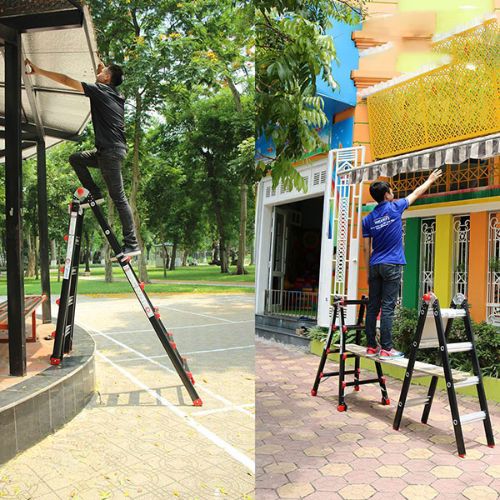

Multi-purpose aluminum ladders have basic structures, super easy for operation, can use 4 different positions as: Double use ladder (A-shape), Extension ladder (I-shape), Staircase – steps ladder and Scaffolding base.

3. Advantages

– Get one for decorating and household cleaning all year round
– Provides long-lasting durability
– Fully Assembled, easy to move when working. Small in size after folding, easy to transport and store.
– Use with many shapes, convenient for using with different positions, areas.
